Sized for your site. Use these tables to pick
from 50+ different runners.
|
 |
 |

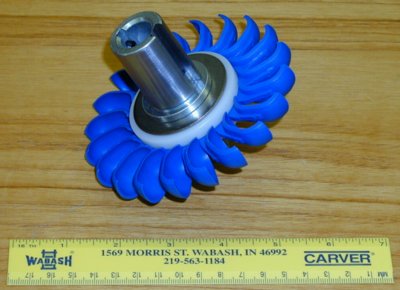

| Injection molded plastic bluespoons for use with nozzles up to 11/16" (17mm) bore. | |
| $120 | 3.24" (82 mm) pitch diameter 20 bluespoon
runner.
Assembled runner includes basic arbor, hub and 20 blue spoons |

|
|

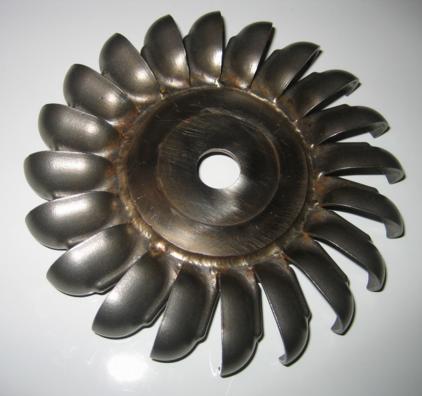

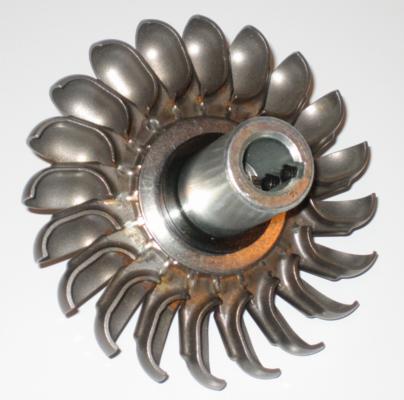

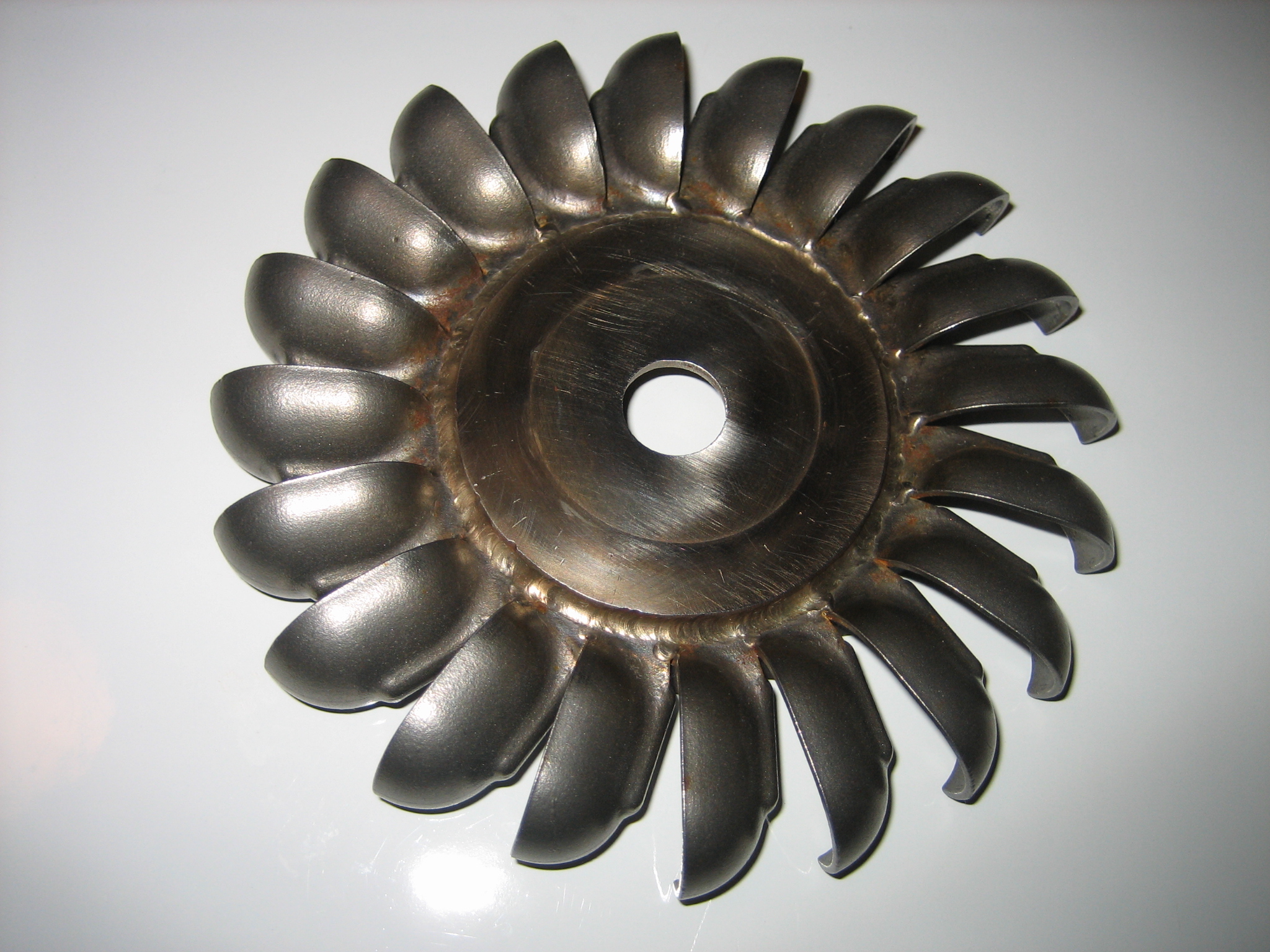

| $360 | Stainless bluespoon turgo runner.
Professionally TIG welded precision 17-4 PH stainless steel castings. Complete runner includes choice of custom or basic arbor. Available in 20, 20 and 24 spoon sizes. Larger welded stainless runners of 25, 26, 27 and 28 stainless bluespoons available at a cost of $15 per spoon. |

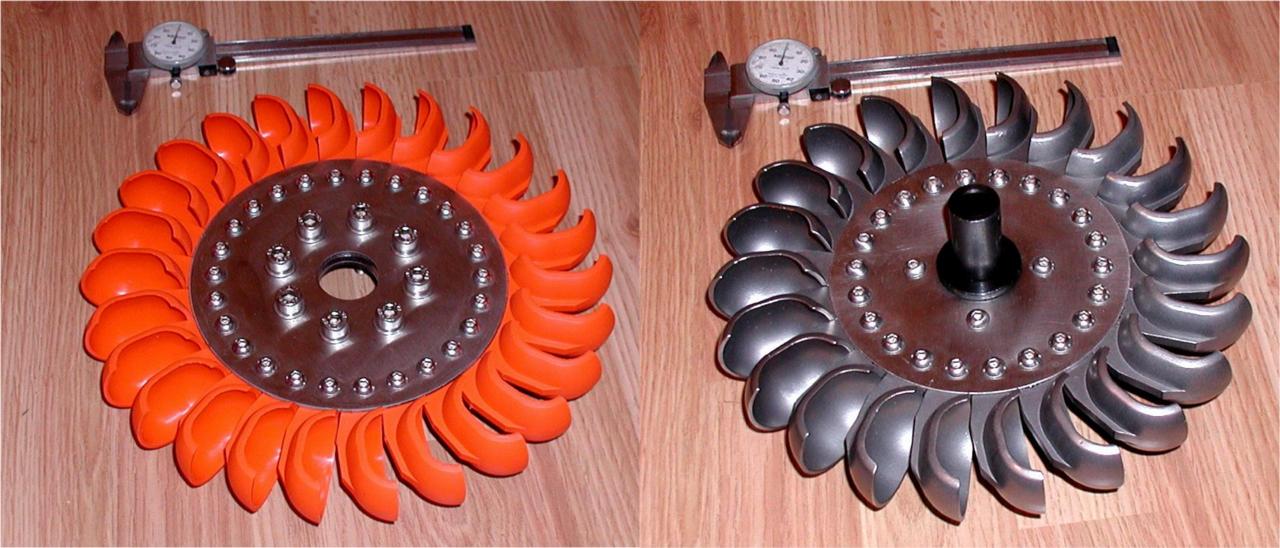

Injection molded plastic & cast stainless orangespoons for nozzles to 1-3/8" (34 mm) bore. |
$240
|
Custom orangespoon runners for use with
nozzles up to 1-3/8" (34mm) diameter.
Assembled runner includes choice of custom or basic arbor, stainless hub and from 16 to 24 orange spoons ( 5.9-7.8" or 149-198mm pitch diameter ) Pitch Diameter: Dp = spoons * 0.242" + 2" or Dp = spoons * 6.15 mm + 51 mm Runners with more than 24 spoons are available at a cost of $10*spoon count. Custom center hole and mounting bolt circle for your shaft flange available with no extra charge. |
|
$480
|
Custom runners using a 75% orange scale precision cast stainless replica elliptical profile spoons. Price shown for runners from 16 to 24 spoon. Runners with more than 24 spoons are available at a cost of $20 per spoon. |
$528
|
Custom runners using a precision cast stainless steel orange spoon replica . Price shown for runners from 16 to 24 spoon. Runners with more than 24 spoons are available at a cost of $22 per spoon. |
|
$960
|
Custom runners using a precision cast stainless steel 150% scale replica of orange spoons . Price shown for runners from 16 to 24 spoon. Runners with more than 24 spoons are available at a cost of $40 per spoon. Runner pitch diameter is 1.5 x orange spoon runners. |
|
Quote |
Custom 400mm pitch diameter runners using the new design elliptical profile spoons |

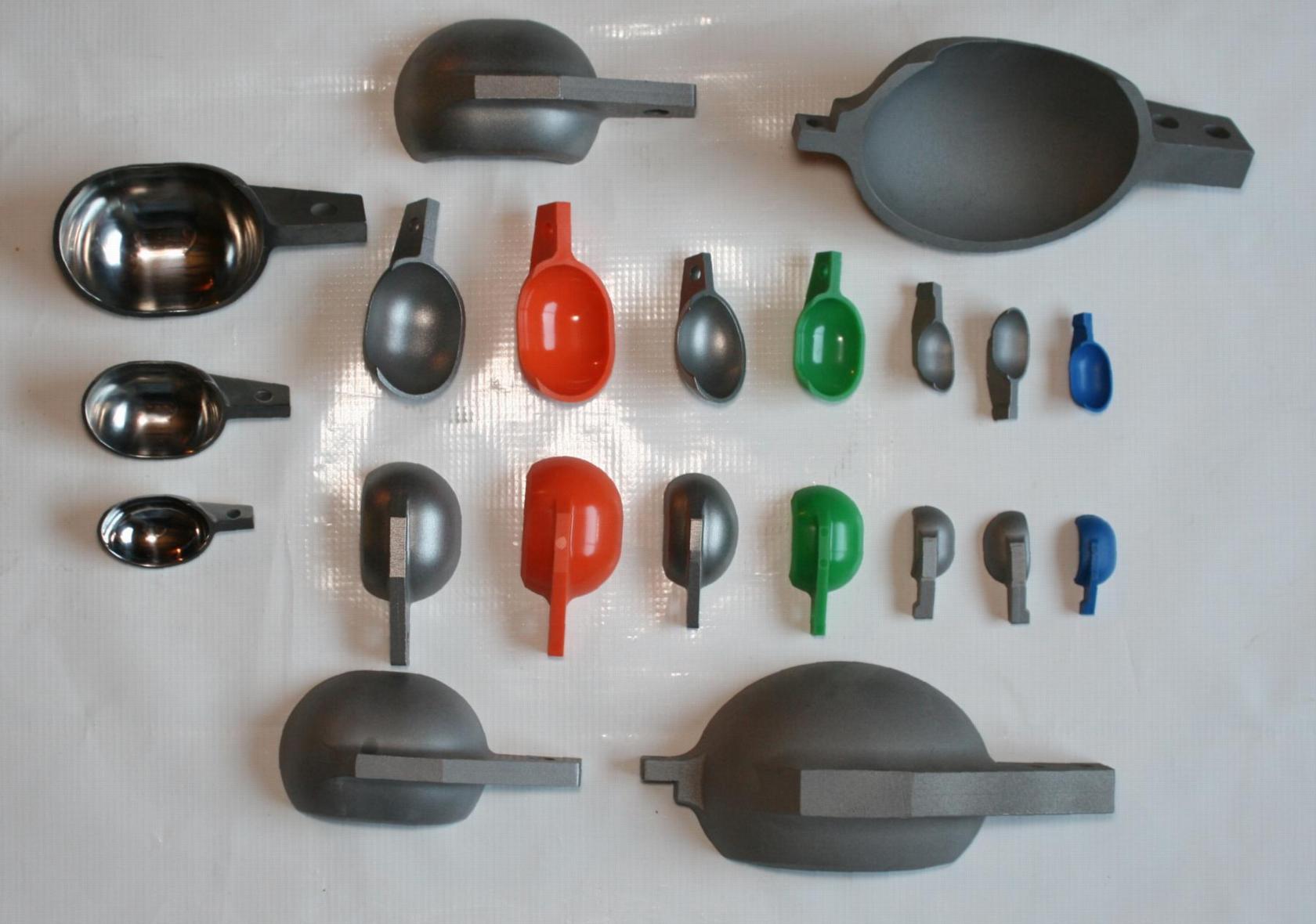

| Turgo Spoons: Build your own turgo runner. |
Click on photo for larger image
| Hub drawings or templates available. | |
|
$3
|
Blue spoons to build your own runner.
Made in Sweden.
Turgo spoons for use with nozzles up to 11/16" (17mm) diameter. |
|
$4
|
Orange spoons to build your own runner.
Made in Sweden.
Turgo spoons for use with nozzles up to 1-3/8" (34mm) diameter. |
|
$12
|
Precision cast 17-4 PH stainless replica
of the bluespoon.
Turgo spoons for use with nozzles up to 11/16" (17mm) diameter. |
|
$16
|
Precision cast 17-4 PH stainless elliptical
profile turgospoon designed for 24 spoon 150mm pitch
diameter runner. For use with nozzles up to 0.96" (24.4mm) diameter. |
|
$18
|
Precision cast 17-4 PH stainless replica
of the Orange spoon.
Turgo spoons for use with nozzles up to 1-3/8" (34mm) diameter. |
| $32 | Precision cast 17-4 PH stainless 150%
scale replica of the Orange spoon.
Turgo spoons for use with nozzles to 2.0 inch (50 mm). |
| $100 | Precision cast 17-4 PH stainless elliptical
profile turgospoon designed for 24 spoon 400mm pitch
diameter runner. For use with nozzles up to 2.5" (65mm) diameter. |
| Nozzles |
|
Information on nozzle alignment for turgo runners |
|
|

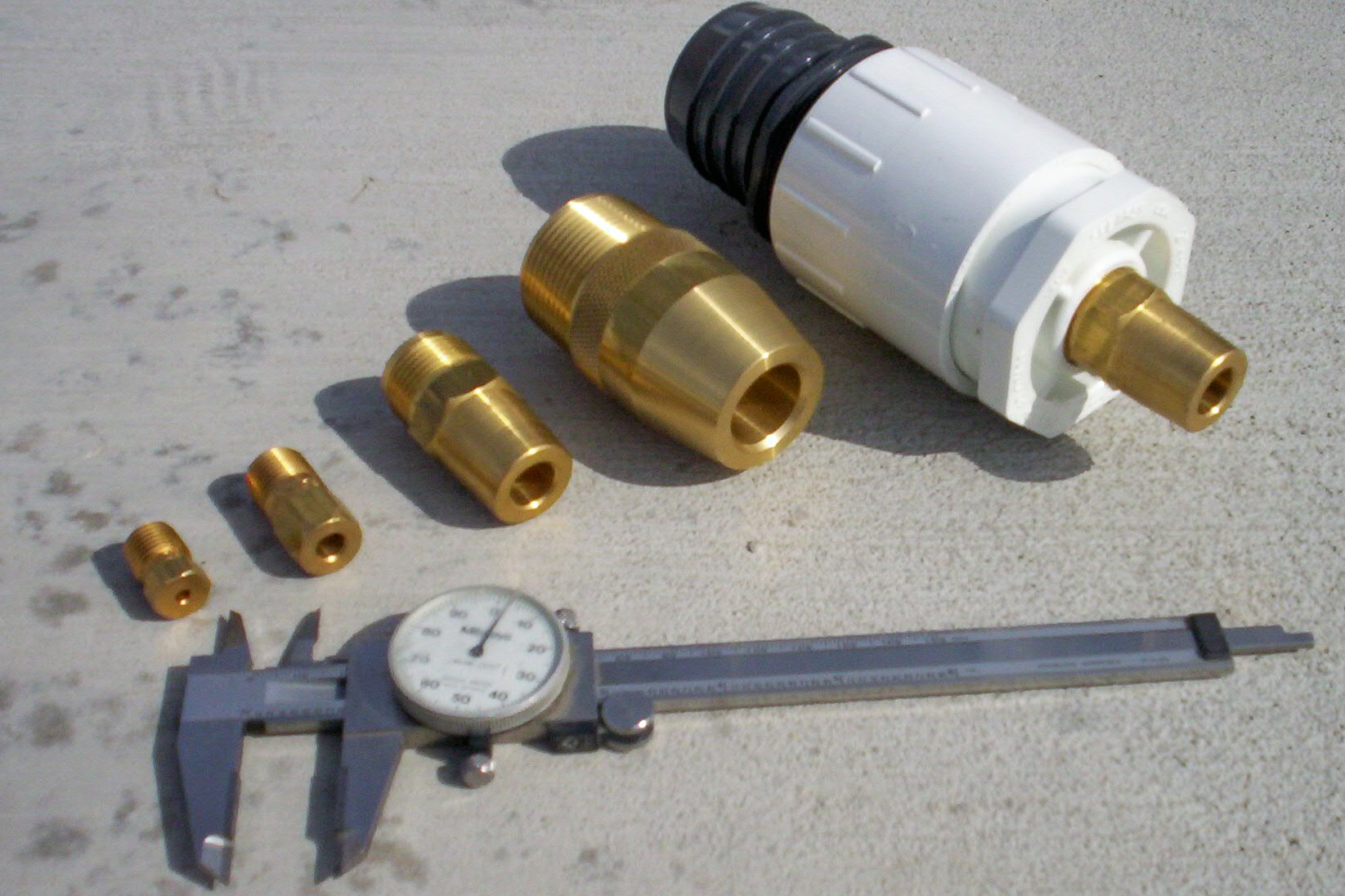

$11
|
Series 70 (3/8" NPT) nozzles. |
|
$22
|
Series 80 (3/4" NPT) nozzles. |
|
$66
|
Series 125 (1-1/4" NPT) nozzles, custom machined brass in 3/4", 7/8", 1", or 1-1/8" bore. |
| Turgo and Pelton Arbors |
| $15 | Basic arbor to fit motor/generator shaft and mount 1/2" ID impulse runner. Shaft sizes 3/8", 1/2", 5/8", and 5/8" with keyway. Will also fit ES&D pelton. Specify RH or LH thread. Use LH thread with turgo spoons above to direct water away from generator. Pelton may use either. All arbors, basic or custom, are plated steel. Unfortunately stainless steel arbors are not available. Stainless shaft couplings may be available at a higher cost. Check for availability. |
| $30 | Custom arbor to fit 7/8", 28mm or 1-1/8" keyed shaft (shaft coupling required), or threaded to fit most Ford or GM alternators. Specify RH or LH thread for arbor shaft (1/2-20RH or 1/2-20LH). |
| $25 | Shaft coupling for 7/8" or 1-1/8" arbors. |
| Technical Information |
| Ordering Information |
|
$10 USA, $20-$30 International for spoons & blue runners $15 USA, $35-$45 International for orange spoon runners I now offer inverters, PV, wind turbines, controllers, etc. to complete your system
or use your PayPal.com account (by eBay) Ordering and ProPay Instructions Para informacion y venta en España contactar con INERSOL sl. |
 |
|||||||
