Hartvigsen-Hydro
Components for microhydro systems

Hartvigsen-Hydro
Joseph Hartvigsen
1529 South 400 East
Kaysville, UT 84037  USA
joe@h-hydro.com

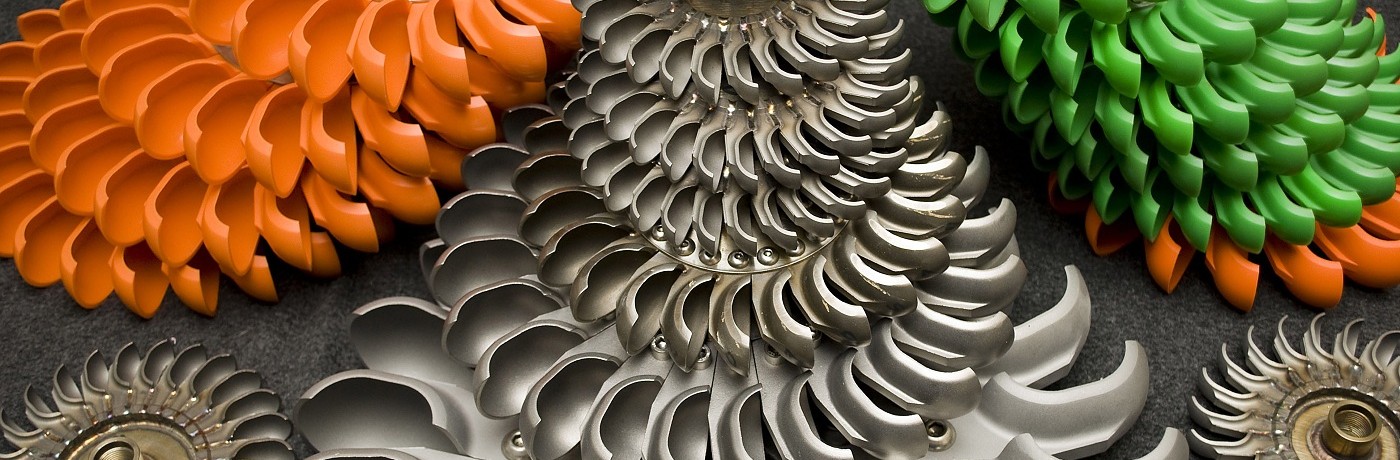

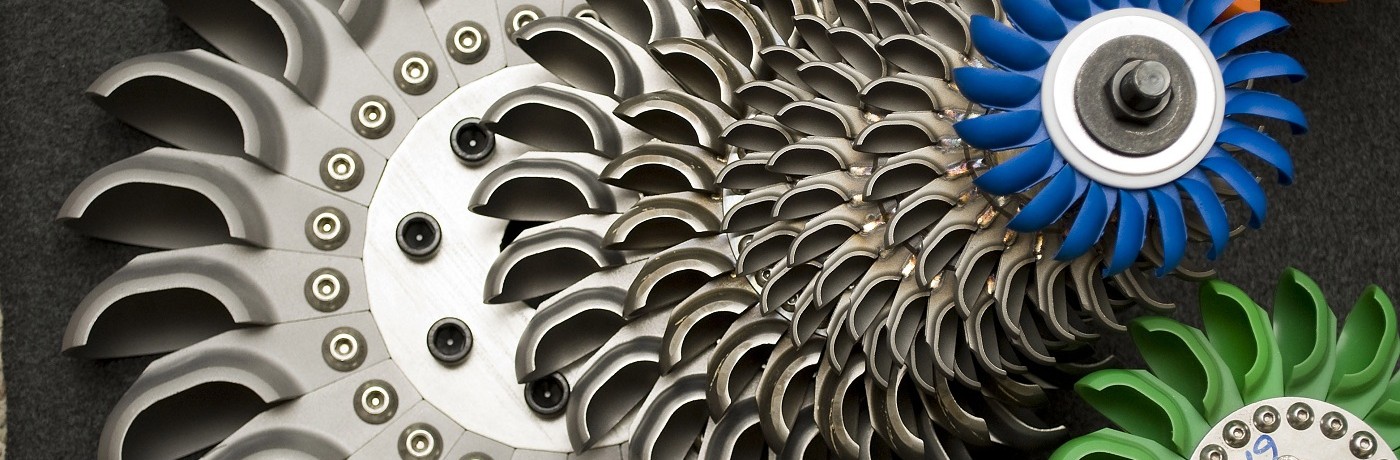

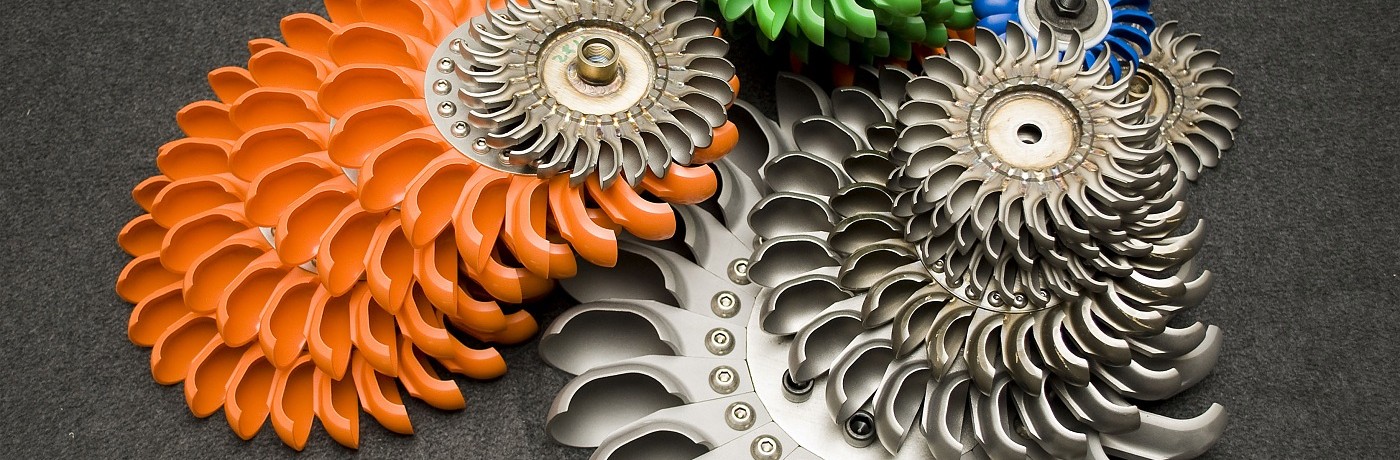

Custom Turgo Runners
Sized for your site.
Spoons and Turbines Produced in Utah, USA.

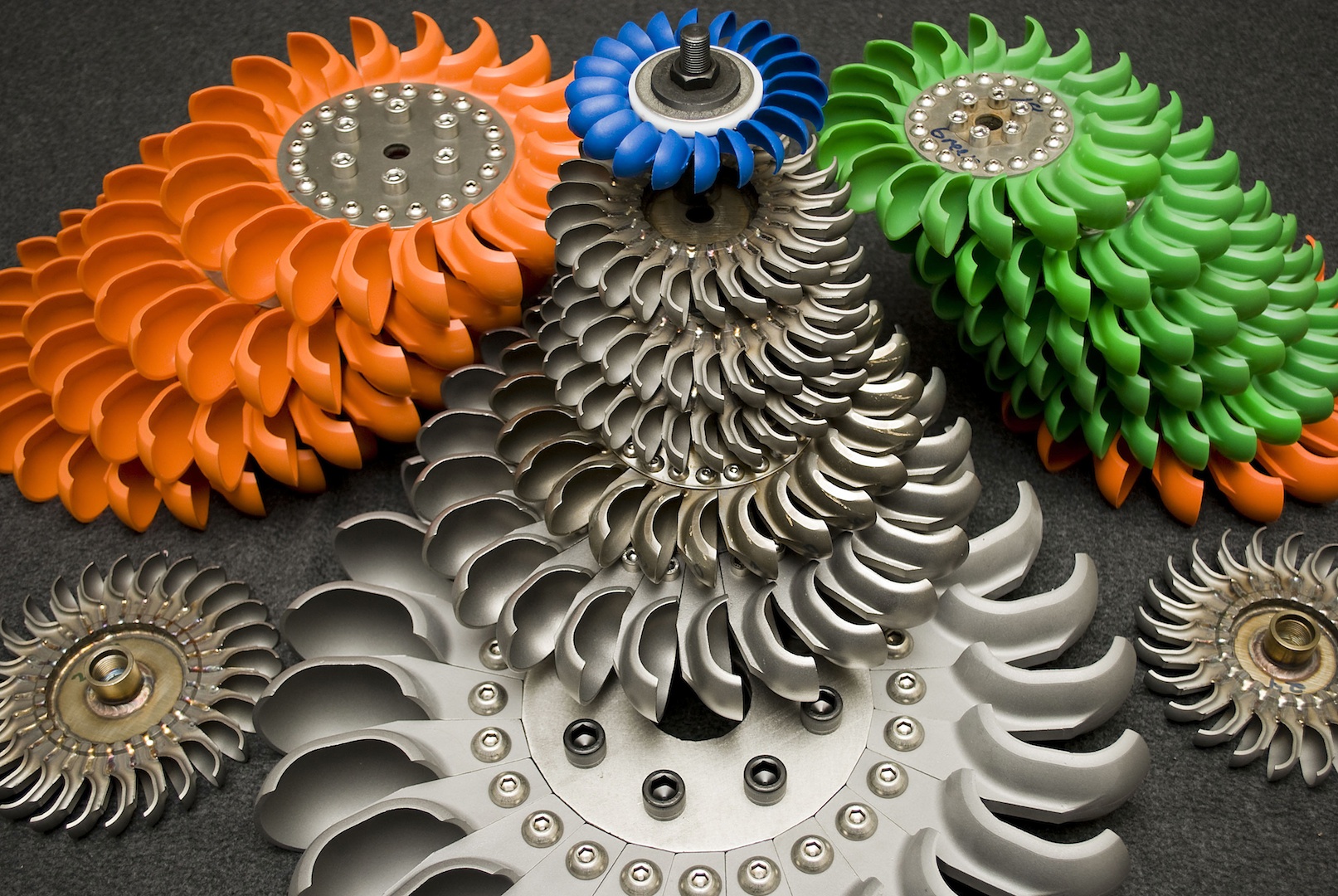

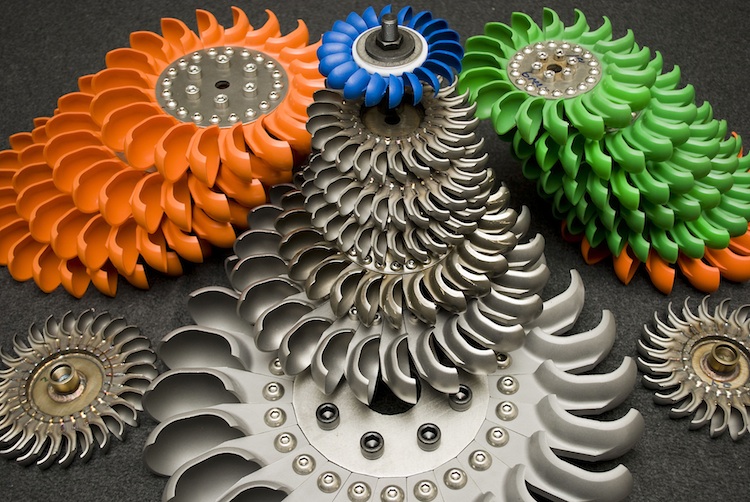

Use these tables to pick from 50+ different runners.
(match runner diameter, site head, spoon material and target rpm)
spreadsheet file or pdf file
An affordable custom turbine to match your site.
Click on image for larger picture

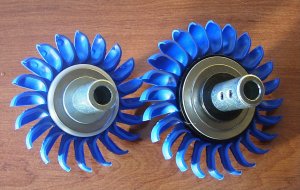

New heavy duty bluespoons from redesigned mold.
Injection molded 33% glass fiber filled nylon composite bluespoons, for use with nozzles up to 11/16" (17mm) bore.

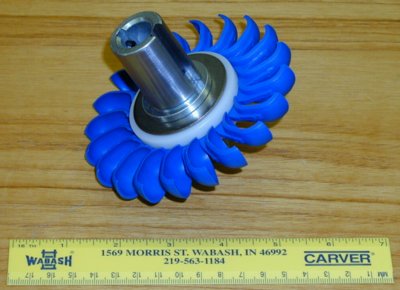

$95 3.35" (85 mm) pitch diameter 20 bluespoon runner.
Assembled runner includes basic 1/2" or 5/8" arbor, hub and 20 blue spoons
$120 3.35" (85 mm) pitch diameter 20 bluespoon runner.
Assembled runner includes arbor from custom arbor list below, hub and 20 blue spoons

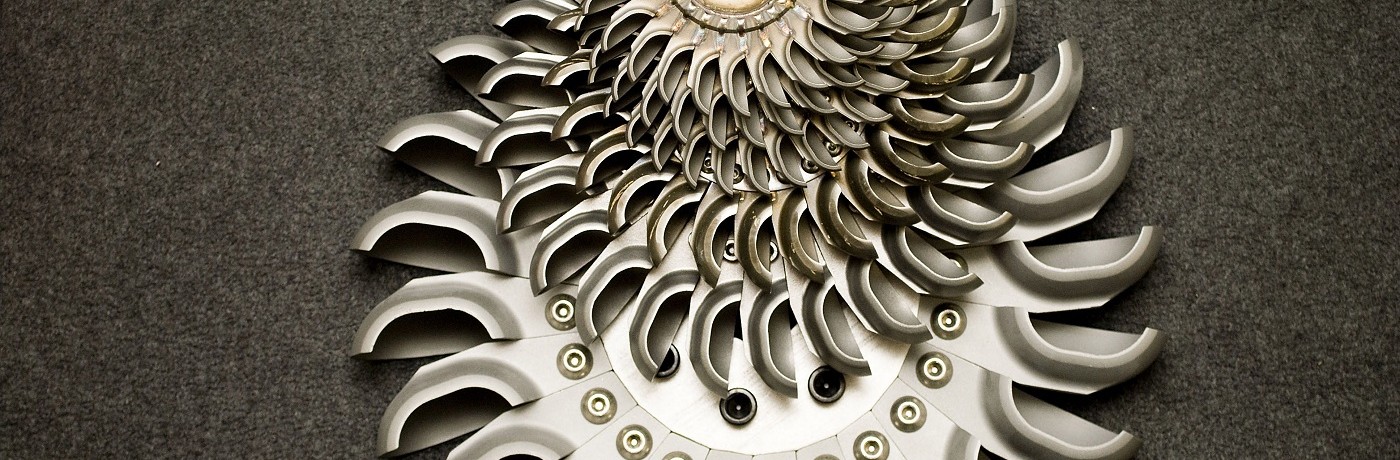

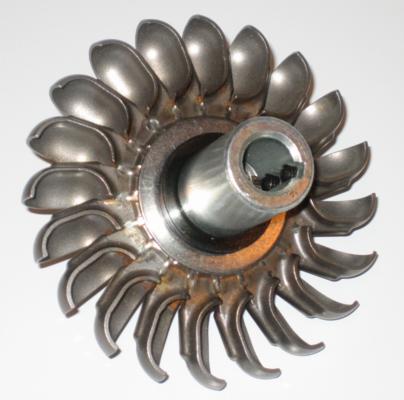

Precision cast stainless bluespoon size
$360 Stainless bluespoon turgo runner.
Professionally TIG welded precision 17-4 PH stainless steel castings. Complete runner includes choice of custom or basic arbor. Available in 20, 20 and 24 spoon sizes. Larger welded stainless runners of 25, 26, 27 and 28 stainless bluespoons available at a cost of $15 per spoon. This runner is available in your choice of right hand (RH turns clockwise) or left hand (LH turns counter clockwise). All other runner sizes are RH only.

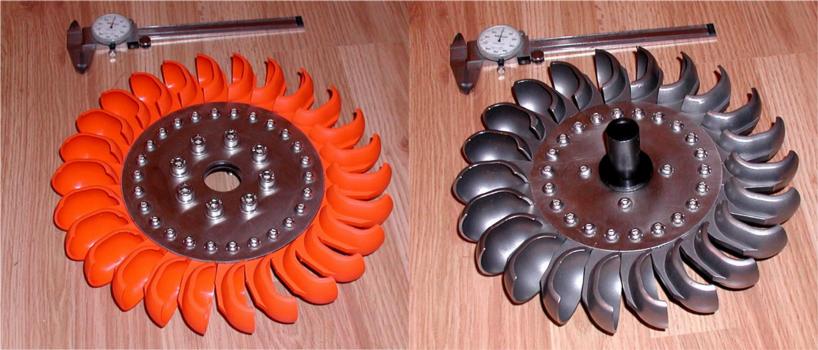

Injection molded plastic & cast stainless orangespoons for nozzles to 1-3/8" (34 mm) bore.
$240
 NEW Custom greenspoon runners for use with nozzles up to 1" (25mm) diameter.
Assembled runner includes choice of custom or basic arbor,
stainless hub and from 20 to 28 green spoons ( 5.2-6.6" or 131-169mm pitch diameter )
Pitch Diameter: Dp = spoons * 0.181" + 1.5"  or Dp = spoons * 4.6 mm + 38 mm
Runners with more than 28 spoons are available at a cost of $10*spoon count.
Custom center hole and mounting bolt circle for your shaft flange available with no extra charge.
$240
 Custom orangespoon runners for use with nozzles up to 1-3/8" (34mm) diameter.
Assembled runner includes choice of custom or basic arbor,
stainless hub and from 16 to 24 orange spoons ( 5.9-7.8" or 149-198mm pitch diameter )
Pitch Diameter: Dp = spoons * 0.242" + 2"  or Dp = spoons * 6.15 mm + 51 mm
Runners with more than 24 spoons are available at a cost of $10*spoon count.
Custom center hole and mounting bolt circle for your shaft flange available with no extra charge.
$480
 Custom runners using a 75% orange scale precision cast stainless replica elliptical profile spoons. Price shown for runners from 16 to 24 spoon. Runners with more than 24 spoons are available at a cost of $20 per spoon.
$528
 Custom runners using a precision cast stainless steel orange spoon replica . Price shown for runners from 16 to 24 spoon. Runners with more than 24 spoons are available at a cost of $22 per spoon.
$1080
 Custom runners using a precision cast stainless steel 150% scale replica of orange spoons . Price shown for runners from 16 to 24 spoon. Runners with more than 24 spoons are available at a cost of $45 per spoon. Runner pitch diameter is 1.5 x orange spoon runners.
By
Quote
 Custom 400mm pitch diameter runners using the new design elliptical profile spoons


Optional Services
from $200
 Spin Balancing
Balancing is not required for plastic spoon runners. Welded stainless spoon runners can be spin balanced at a local pump impeller balancing shop. Cost depends on runner size and center hole mandrel dimension.
$190
 Welding
Turgo spoons are TIG welded to each other and to the center hub plate.This is a more secure mounting than the standard bolted design and is recommended for all but the lowest head applications.
$25-$100
 Polishing
Turgo spoons are professionally polished by hand to a mirror like finish. This improves the appearance and efficiency of the runner but is very labor intensive. $25/spoon for orange and x0.75 size spoons, $40/spoon for x1.5 spoons, $50/spoon for x2 spoons and $100 for x3.5 spoons.

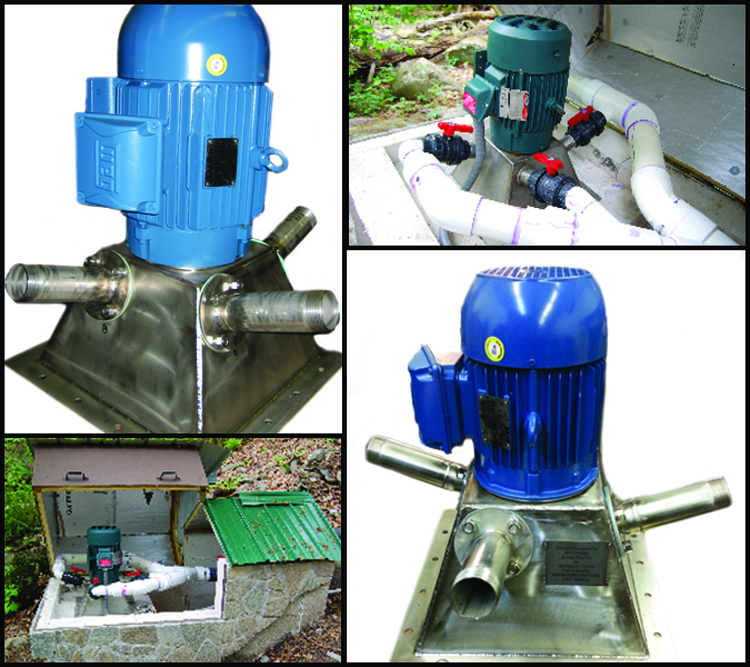

Turgo Housings


Click on photo for larger image

For most green or orange spoon runners with 182TC - 215TC frame motors.
Professionally TIG welded 3/16" stainless steel plate with 11ga stainless internal baffles.
Removable flanged stainless nozzle assembly with 2" NPT pipeline connection and 80 series (3/4" NPT) nozzzles mounts.
$1800
 single nozzle turbine housing.
$2000
 two nozzle turbine housing.
$2200
 three nozzle turbine housing.
$2400
 four nozzle turbine housing.
by quote
 Larger or smaller custom sizes.
by quote
 WEG Electric motors, factory new with WEG's "No-Fault Warranty"

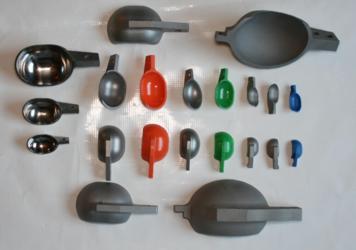

Turgo Spoons: Build your own turgo runner.


Click on photo for larger image

Hub drawings or templates available.
$3
 Blue spoons to build your own runner. Now made in the USA with a newly redesigned mold.
Turgo spoons for use with nozzles up to 11/16" (17mm) diameter.
$4
 NEW Green spoons to build your own runner. Made in USA. Glass fiber filled nylon
Turgo spoons for use with nozzles up to 1" (25mm) diameter.
$4
 Orange spoons to build your own runner. Made in USA. Glass fiber filled nylon
Turgo spoons for use with nozzles up to 1-3/8" (34mm) diameter.
$12
 Precision cast 17-4 PH stainless replica of the bluespoon.
Turgo spoons for use with nozzles up to 11/16" (17mm) diameter. This spoon is available in right hand (RH turns clockwise) and left hand (LH turns counter clockwise) parts. All other spoon sizes are RH only.
$16
 Precision cast 17-4 PH stainless elliptical profile turgospoon designed for 24 spoon 150mm pitch
diameter runner. For use with nozzles up to 0.96" (24.4mm) diameter.
$18
 Precision cast 17-4 PH stainless replica of the Orange spoon.
Turgo spoons for use with nozzles up to 1-3/8" (34mm) diameter.
$32 Precision cast 17-4 PH stainless 150% scale replica of the Orange spoon.
Turgo spoons for use with nozzles to 2.0 inch (50 mm).
$100 Precision cast 17-4 PH stainless elliptical profile turgospoon designed for 24 spoon 400mm pitch
diameter runner. For use with nozzles up to 2.5" (65mm) diameter.
$300 Precision cast 17-4 PH stainless 350% scale version of the Orange turgospoon,
designed for 24 spoon 700mm pitch diameter runner. For use with nozzles up to 3.75" (95mm) diameter.
Nozzles

Click on nozzle icon for photo of nozzle types

Standard nozzle sizes and flow rate table (.pdf) or spreadsheet (.xls).
Information on nozzle alignment for turgo runners
$11
 Series 70 (3/8" NPT) nozzles.
$22
 Series 80 (3/4" NPT) nozzles.
$66
 Series 125 (1-1/4" NPT) nozzles, custom machined brass in 3/4", 7/8", 1", or 1-1/8" bore.


Turgo and Pelton Arbors
$20  Basic arbor to fit motor/generator shaft and mount 1/2" ID impulse runner. Shaft sizes 3/8", 1/2", 5/8", and 5/8" with keyway. Will also fit ES&D pelton. Specify RH or LH thread. Use LH thread with turgo spoons above to direct water away from generator. Pelton may use either. All basic arbors are plated steel.
$30 Custom arbor to fit 7/8", 28mm or 1-1/8" keyed shaft (shaft coupling required), or threaded to fit most Ford or GM alternators. Specify RH or LH thread for arbor shaft (1/2-20RH or 1/2-20LH). The 7/8" and 1-1/8" arbors are stainless, while 28mm and 17mm auto alternator arbors are plated steel.
$30-$70 Plated steel shaft coupling for 7/8" ($30) or 1-1/8" ($35) arbors. Stainless shaft couplings are available in 7/8" ($60) or 1-1/8" ($70) Inquire for larger sizes.


Technical Information

Example Turgo System, Spreadsheets & Drawings

Photo Tour of My Microhydro Site


Ordering Information
Shipping Estimate (Email for your specific rate):
$12 USA, $20-$30 International for spoons &  blue runners
$15 USA, $35-$45 International for orange spoon runners

I now offer inverters, PV, wind turbines, controllers, etc. to complete your system

Through ProPay.com

or use your PayPal.com account (by eBay)

Ordering and ProPay Instructions

Para informacion y venta en España  contactar con INERSOL sl.
